Service Description
I will provide a complete structural analysis and design package using Autodesk Robot, Revit (BIM), or Graitec OMD/Arche — tailored to your project needs.

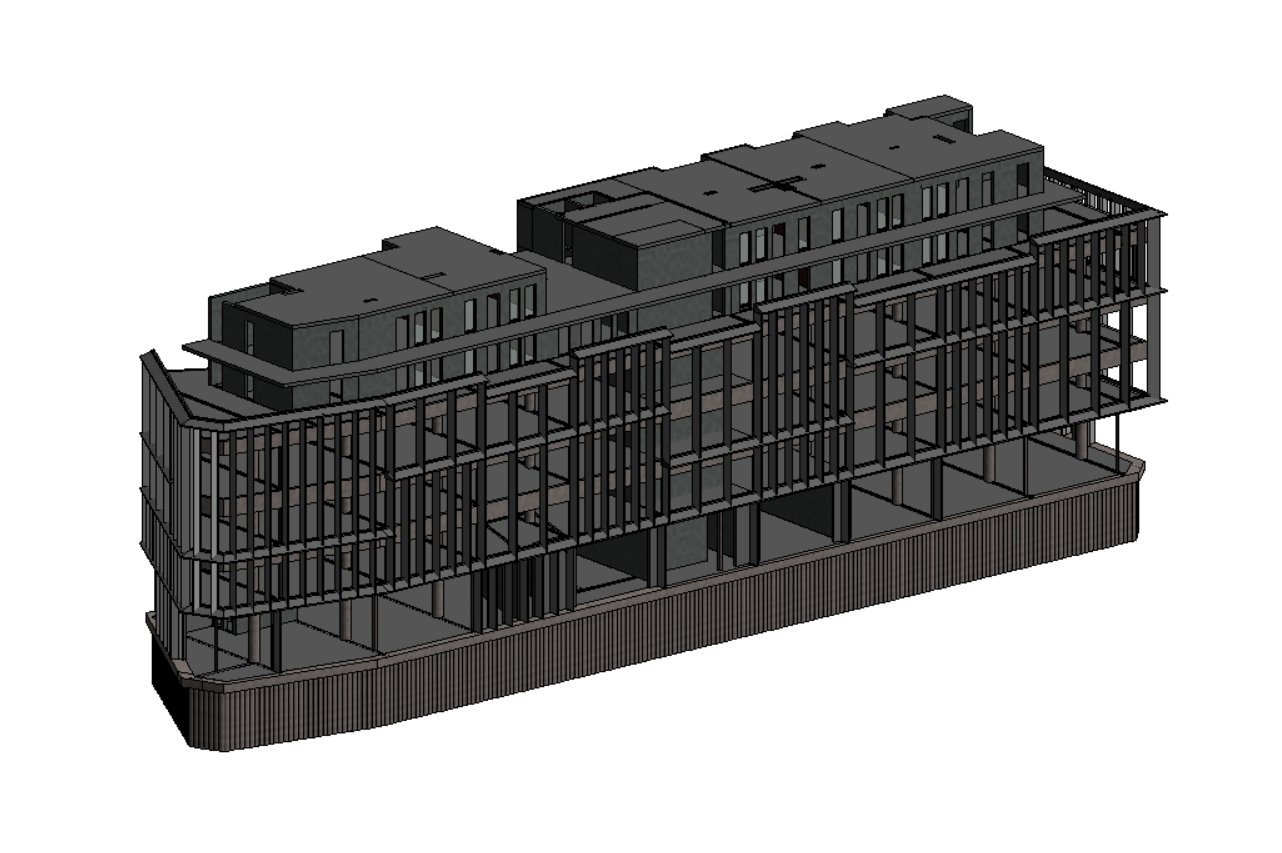

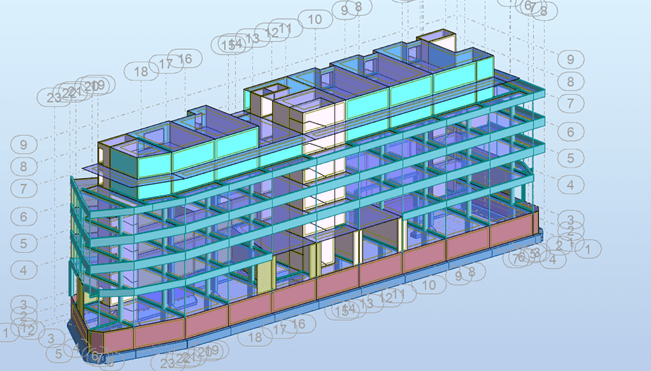

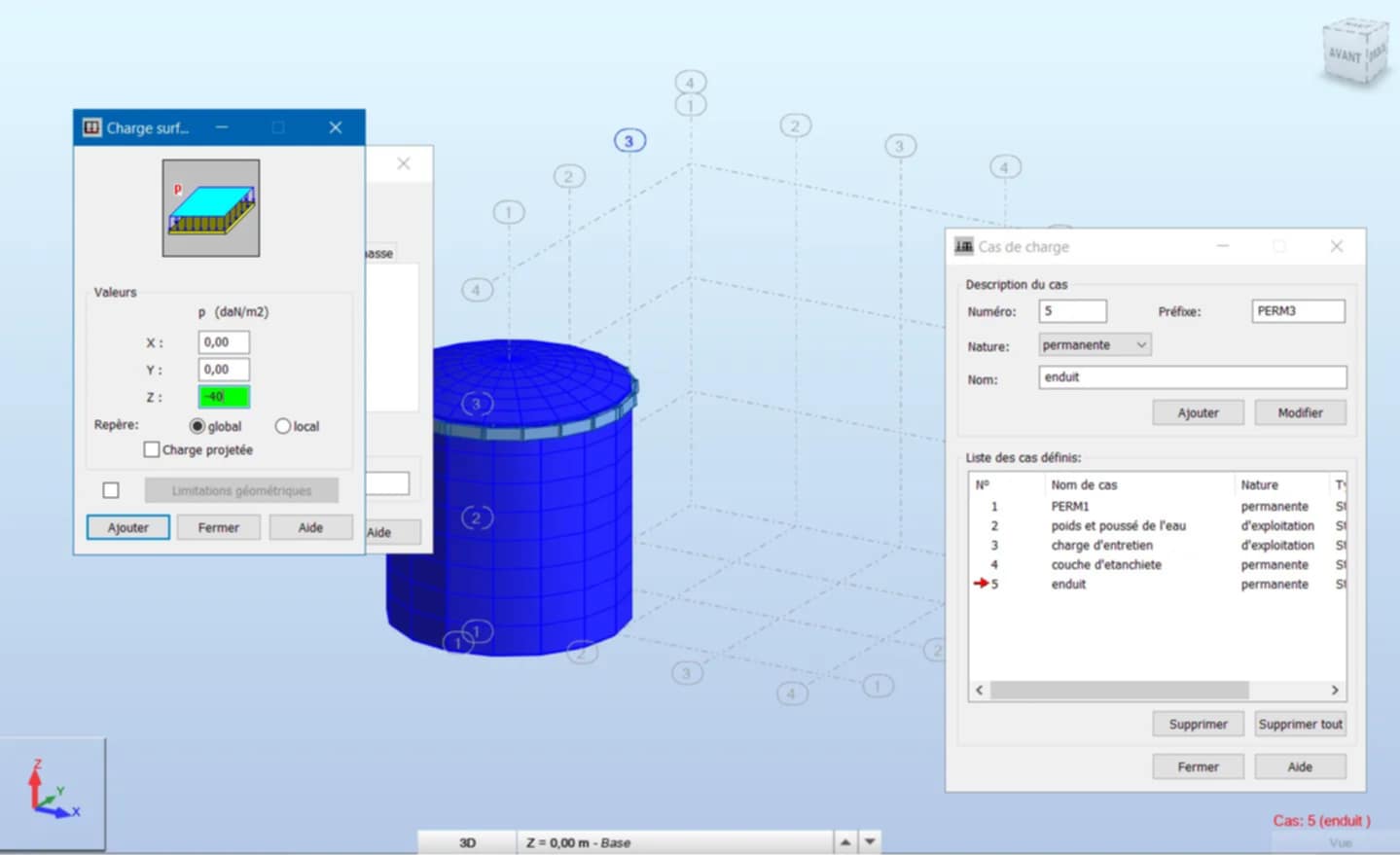

You will receive a detailed and professional solution including 3D modeling, structural analysis, member sizing, reinforcement detailing, clash detection, and calculation reports — all in compliance with relevant codes and standards. I can handle a wide range of projects such as residential, commercial, industrial, and infrastructural structures (reinforced concrete, steel, reservoirs, bridges, etc.).
Depending on your requirements, I will work on one of the specialized platforms (Robot Structural Analysis, Revit, or Graitec OMD/Arche) to deliver:
✔️ Optimized and code-compliant structural design
✔️ Clear 3D models and well-organized calculations
✔️ Comprehensive reports, drawings
✔️ Improved efficiency, safety
Whether your priority is detailed BIM modeling, precise structural analysis, or clear drawings, I ensure high-quality deliverables tailored to your project.
Frequently Asked Questions
Gig FAQ
How do you ensure compliance with local standards and codes?
Every element is modeled according to relevant building codes (Eurocode 2 , ACI, BAEL) and for steel structure i would use codes as ( CM66 , Eurocode 3 ). I also run regular validations and clash detections to maintain accuracy and compliance throughout the project.
In what formats will the deliverables be provided ?
Models can be delivered in native formats: Revit (.rvt), Graitec Arche (.arc/.gdb), Robot (.rbt) .
How accurate will the structural analysis be ?
Analysis is based on precise geometry, assigned materials, and load conditions. Robot and Arche provide verified structural calculations, and all results are cross-checked against project requirements.
